Features:

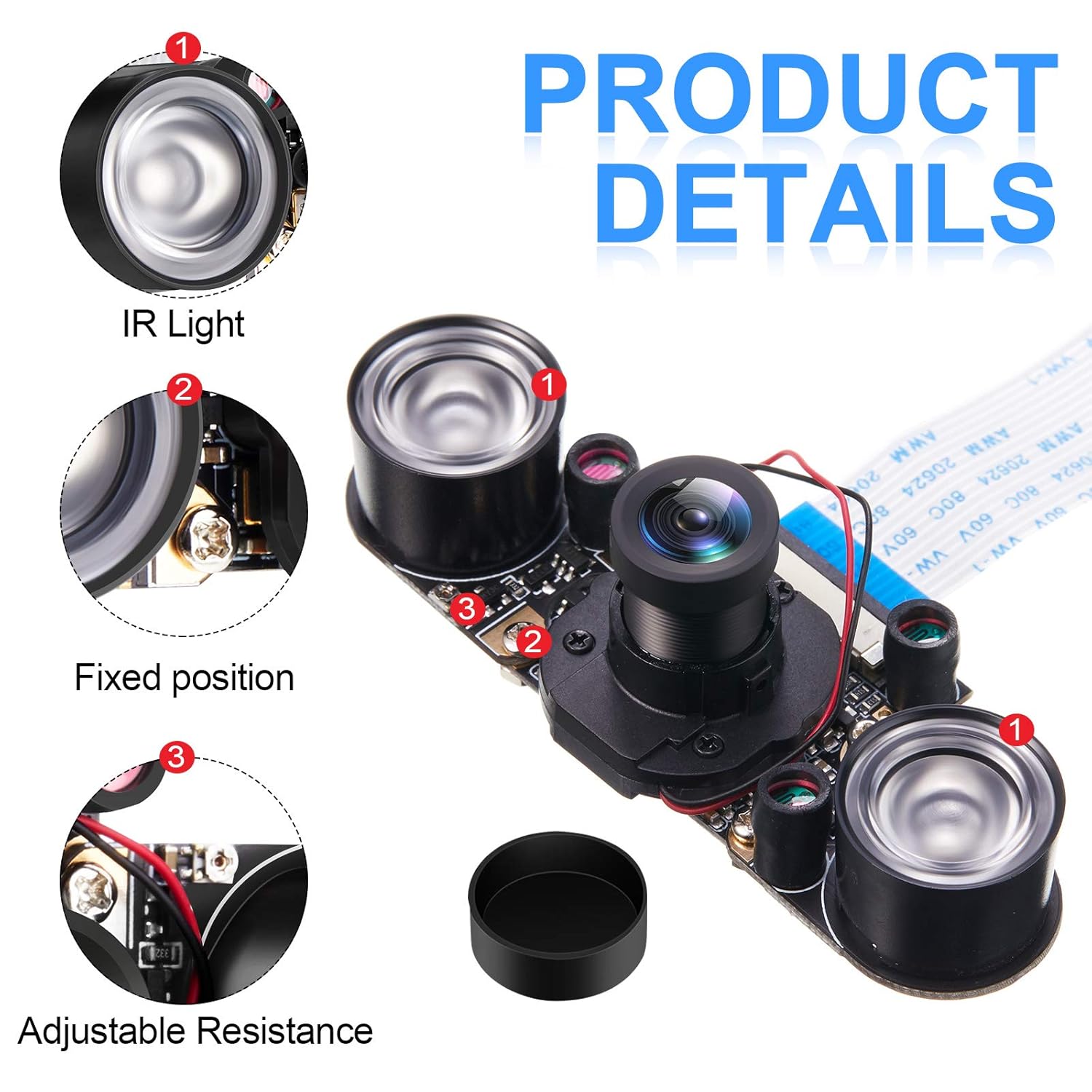

The built-in IR-CUT allows camera module to automatically switch between day mode and night mode.
Comes with 2 infrared fill lights to support infrared night vision to take photos at night.
Support focal length adjustment to fit the distance of the object.
Support shooting 2592 x 1944 pixel static image and recording 1080p@30fps, 720p@60fps and 640 x 480p 60/90 video.
4 Screw holes measuring 26.5 x 32 mm for installation.
Support a power output of 3.3V.
The way to switch between night vision mode and non-night vision mode:
A. Default non-night vision mode
B. Switch to night vision mode:
1. Execute the instruction: sudo nano /boot/config.txt
2. Add disable_camera_led=1
3. ‘Ctrl+O’, press ‘Enter’, enter ‘Ctrl+X’ to exit and save
4. Restart, enter non-night vision mode

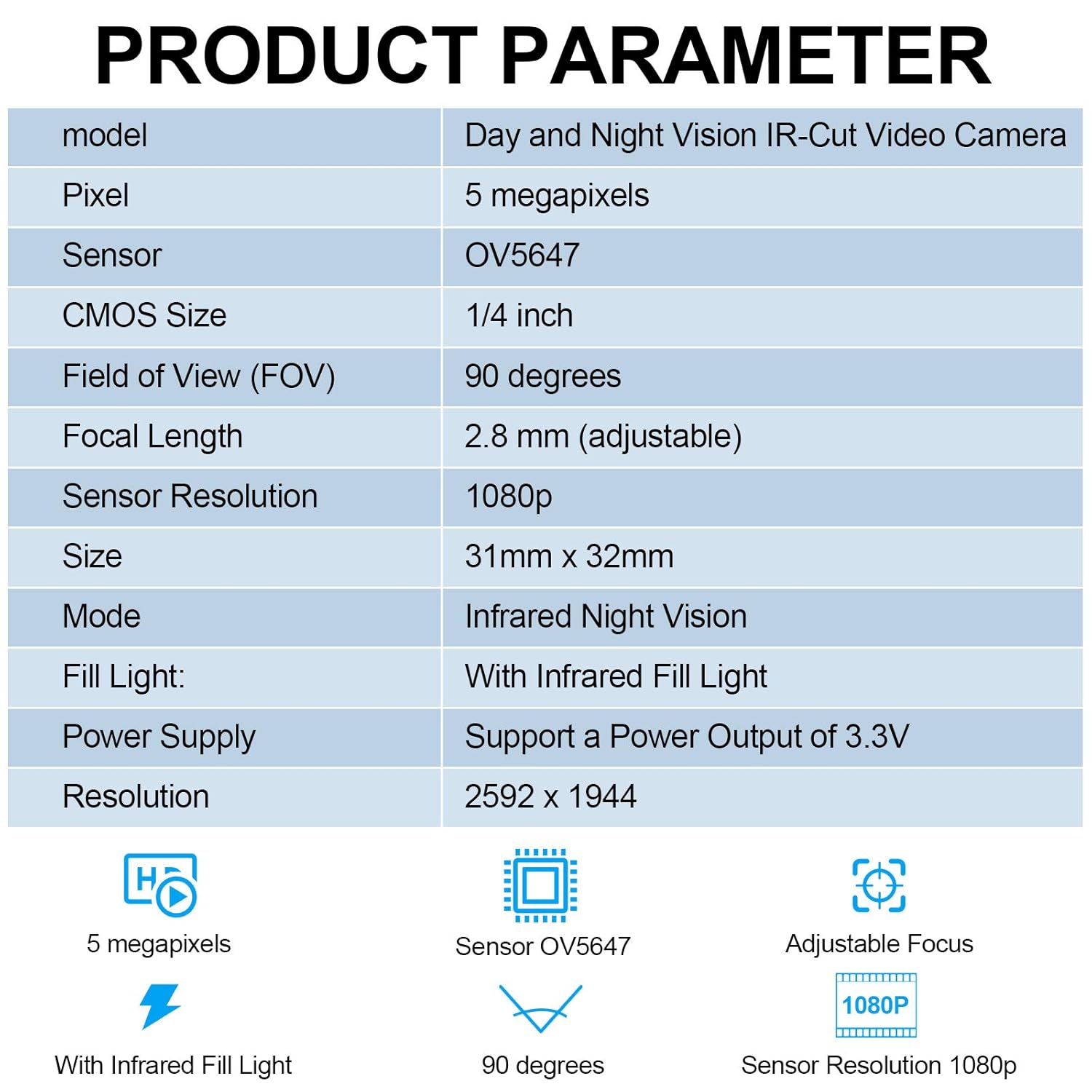

Specifications:
Resolution: 5 megapixels
Sensor: OV5647
CMOS Size: 1/4 inch
Aperture(F): 1.2
Focal length: 2.8 mm (adjustable)
Field of view (FOV): 90 degrees
Sensor resolution: 1080p
Package includes:
2 x 5MP Camera module boards with caps
4 x IR Lights
2 x 15 cm FFC cable
2 x 15 cm Pi ribbon cable
8 x Screws and nuts
Note:
The mention of brand names and any related models above is only for purposes of demonstrating compatibility.
Nice performance: the IR-Cut video camera not only supports shooting 2592 x 1944 pixel static image but also supports recording 1080p@30fps, 720p@60fps and 640 x 480p 60/90 video; Featuring with 1080P 5MP OV5647 webcam sensor, 5 megapixels and adjustable focal length
IR-CUT camera: the camera module has day mode and night mode, it can switch automatically between the 2 modes according to the change of light, which helps you to avoide image deviation and get clearer images during the day and night
CMOS sensor interface: the camera module adopts appropriative CMOS sensor interface (CSI), via the CSI bus; A higher bandwidth link that transmits 5 megapixels data from the camera back to the processor

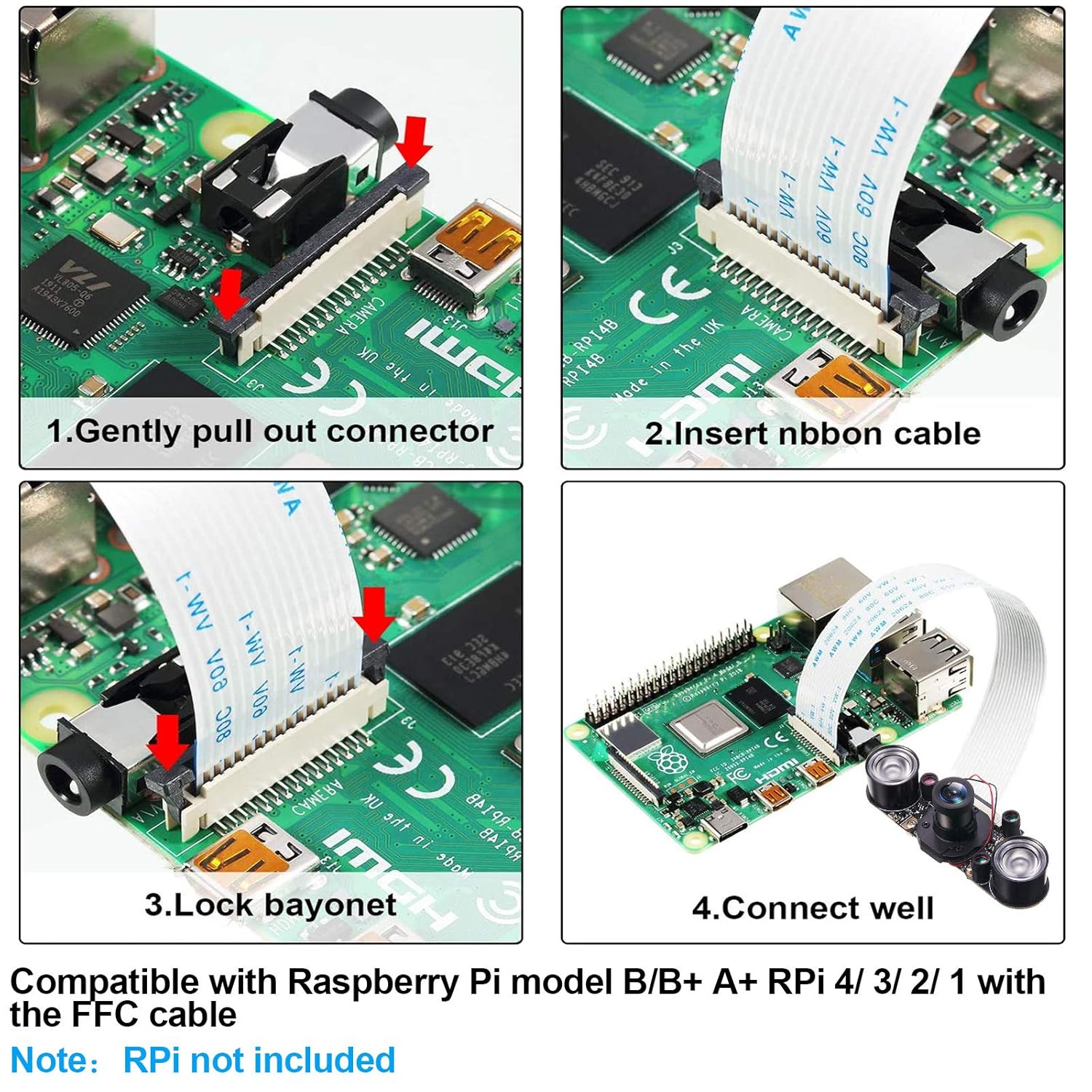

Compatibility: these infrared night vision camera modules are compatible with Raspberry Pi 4/ 3/ 2/ 1 model B/ B +/ a + (except Pi Zero/ Zero W)
Infrared fill light: equipped with 2 infrared fill lights, so the camera module allows you to take pictures at night and you don’t have to worry about the light; The brightness of infrared light will adjust automatically based on the dark of the circumstances
