Price: ₹16,365 - ₹15,365.00
(as of Dec 11, 2025 04:02:08 UTC – Details)
Sensor: Aptina AR0234 (1/2.6”) Global Shutter
Max Resolution: 1920 (H) *1200 (V)
Lens Size: 1/2.6 inch (4:3)
Pixel Size: 3.0μm
Compression Format: MJPEG / YUV2 (YUYV)
Resolution & Frame rate:
1920×1200@90fps MJPEG/1920×1080@90fps MJPEG
1600×1200@90fps MJPEG/1280×960@90fps MJPEG
1280×720@90fps MJPEG/1024×768@90fps MJPEG
960×720@90fps MJPEG/800×600@90fps MJPEG
640×480@90fps MJPEG/320×240@90fps MJPEG
Surface Mount TechnologySMT
Focus: Fixed
Central Definition:600LW/PH (Center)
S/N Ratio: 37dB
Dynamic Range: 70dB
Sensitivity: 1.4V/lux-sec@550nm
Mini Illumination: 0.3lux
Shutter: Global Shutter
Interface: USB2.0 High Speed
AECSupport/AWBSupport/AGCSupport
Adjustable Parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
White balance, Backlight Compensation, Exposure
Lens Parameters: HD 2.1mm lens
Optional 3.6mm/2.8mm/2.9mm/6mm/8mm/12mm/16mm/25mm…
No Distortion Lens (FOV 65~130 degree optional)
Fisheye lens 150 degree /180 degree etc.
LED board power connector: Support 2P-2.0mm socket
Power Supply: USB BUS POWER 4P-2.0mm socket
Operating Voltage；DC5V
Working Current：160mA- 190mA
Dimension：38mm×38mm
Storage Temperature：-20°C to 80°C
Working Temperature：0°C to 60°C
USB Cable :1M
Operating System Request:
WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
Linux with UVC (above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC

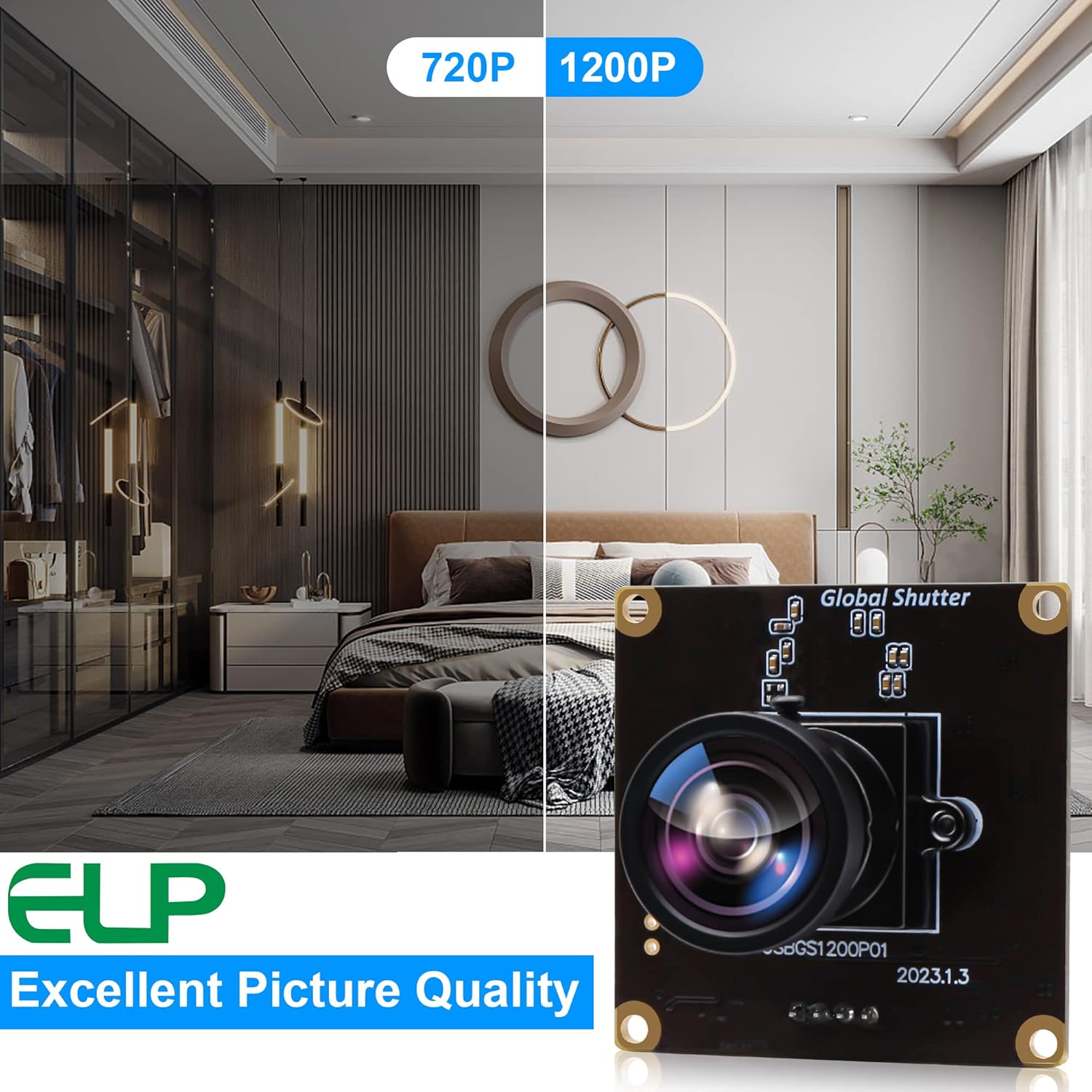

Global Shutter: Shoot high-speed moving objects in crisp sharp images. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras.
HD Resolution: 4MP 1920Hx1200V; Frame Rates: MJPEG 90fps@1920×1200/1080P, fast frame for for high-speed moving objects shooting. 1080P usb camera module with 1/2.6” Aptina AR0234 high quality sensor for sharp clear image.
Wide Angle 120degree No Distortion Lens, HFOV about 126degree, mini 38mmx38mm camera board can be installed in most hidden and narrow position, can be used in any video system for personal or industrial.
Plug&Play: UVC compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
Applications: The sensor’s excellent low-light sensitivity and the low distortion lens allow it to perform better in any application that needs gesture and eye tracking, iris and physiognomy recognition, depth and motion detection.
Camera with UVC for computer, laptop, pc, etc.
Mini lightburn camera for laser engraver.
Support high speed: 1920×1200 @ 90fps MJPEG, 1920×1080 @ 90fps MJPEG, 1600×1200 @ 90fps MJPEG, 1280×960 @ 90fps MJPEG,etc.
