Product description

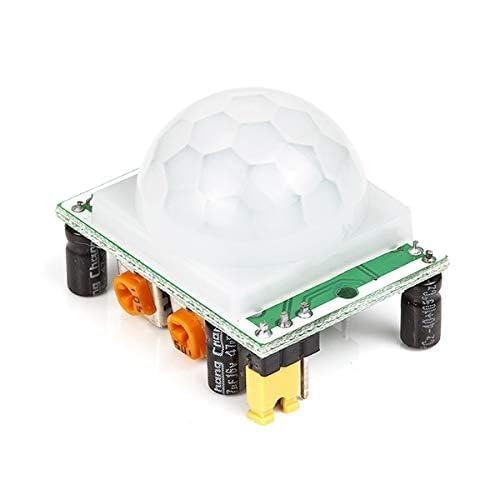

– This Passive Infrared (PIR) Motion Sensor module is designed for accurate detection of human and animal movement using pyroelectric infrared sensing technology.

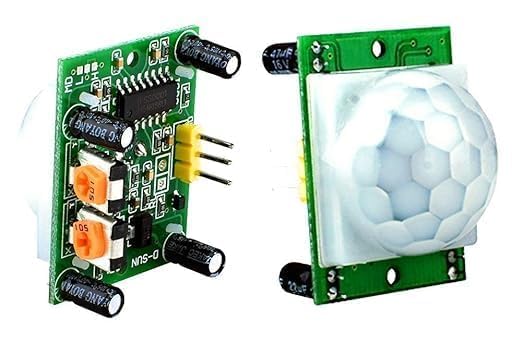

– Equipped with an onboard pyroelectric sensor, amplification circuitry, and a dome-shaped Fresnel lens for wide-angle coverage and enhanced sensitivity.
– Commonly used in security systems, automatic lighting, smart home devices, and motion-activated electronics.

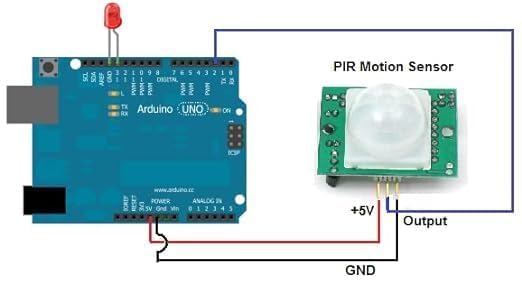

– The module outputs a digital HIGH or LOW signal based on detected movement, making it highly compatible with microcontrollers such as ESP boards.
– Features adjustable sensitivity and adjustable delay time, enabling precise configuration for various environments and automation tasks.
– Operates on a wide voltage range from 4.5V to 20V, supporting both hobby and industrial applications.
– Offers ultra-low power consumption (<60uA), making it suitable for battery-operated systems. Specifications
– Sensor type: Passive Infrared (PIR)
– Color: White + Green or White + Blue
– Working voltage: DC 4.5V – 20V
– Current drain: <60uA – Output signal: HIGH/LOW (3.3V TTL level) – Detection distance: 3m to 7m (adjustable) – Detection angle: <140° – Delay time: 5s to 200s (adjustable; default ~5s ± 3%) – Block time: 2.5s (default) – Operating temperature: -20°C to +80°C – Dimensions: 3.2cm × 2.4cm × 1.8cm (approx.) – Sensitivity adjustment: Rotate clockwise to increase range (up to ~7m), counter-clockwise to reduce (down to ~3m) – Time adjustment: Rotate clockwise to increase delay (up to ~200s), counter-clockwise to reduce (down to ~5s) Applications
– Home and office security alarm systems
– Automatic lighting and energy-saving systems
– Human/animal presence detection for IoT devices
– Smart home automation projects
– Motion-sensing robotics and interactive installations
How it works
– The PIR sensor detects infrared radiation emitted naturally by humans and animals.
– When motion occurs within the sensing range, changes in infrared levels trigger the onboard circuit to output a digital HIGH or LOW signal.
– The Fresnel lens expands the sensor’s detection area, enabling a wide-angle view and improved sensitivity.

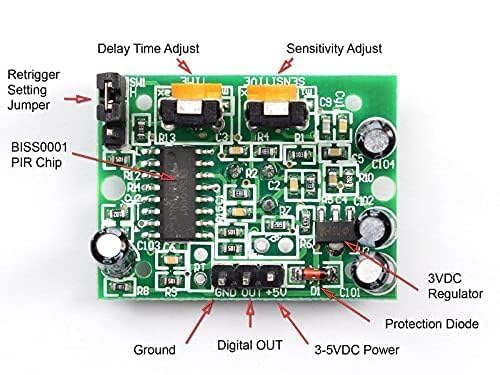

– Built-in potentiometers allow users to fine-tune sensitivity and output delay to match project requirements.
Why buy from Robodium
– High-quality PIR sensors tested for reliability and stability
– Adjustable sensitivity and delay time for versatile applications
– Fully compatible with ESP32, ESP8266, and automation controllers
– Sourced and supplied by Robodium, trusted in electronics and automation components
Safety information
– Operate only within the specified 4.5V–20V DC range.
– Avoid exposing the sensor to direct sunlight or heat sources during operation.
– Ensure correct wiring to prevent malfunction or damage.
– Keep the module dry and avoid use in excessively humid environments.
– Not suitable for children under 12 years without supervision.
VERSATILE DETECTION: PIR motion sensor module with adjustable sensitivity and holding time, perfect for detecting movement of people, animals, or objects within 3-7 metres range.
TECHNICAL SPECIFICATIONS: Operates on DC 4.5V-20V with low current drain under 60μA, featuring 3.3V TTL output signal for reliable performance.
WIDE COVERAGE: Detection angle up to 140 degrees with adjustable distance settings, allowing comprehensive monitoring of designated areas.
CUSTOMISABLE SETTINGS: Adjustable delay time from 5 to 200 seconds with default blockade time of 2.5 seconds for flexible operation requirements.
COMPACT DESIGN: Robust module measuring 3.2cm x 2.4cm x 1.8cm with built-in Fresnel lens, suitable for various installation environments and operating temperature range of -20°C to +80°C.
