Model：ELP-USB8MP05AF-V62
Sensor：IMX179
Sensor Size：1/3.2 inch
Pixel Size：1.4µm x 1.4µm
Image Area：6.18mm x 5.85mm
Max. Resolution：3264(H) X 2448(V) 8 Megapixel
Compression format：MJPEG / YUY2 (YUYV)
Resolution & Frame Rate：
3264X2448 MJPEG@15fps YUY2@1fps 2592X1944 MJPEG@20fps YUY2@2fps
2048X1536 MJPEG@15fps YUY2@3fps 1600X1200 MJPEG@25fps YUY2@5fps
1920X1080 MJPEG@25fps YUY2@5fps 1280X960 MJPEG@25fps YUY2@5fps
1280X720 MJPEG@25fps YUY2@10fps 1024X768 MJPEG@25fps YUY2@10fps
800X600 MJPEG@25fps YUY2@25fps 640X480 MJPEG@25fps YUY2@25fps
320X240 MJPEG@25fps YUY2@25fps
S/N Ratio：34dB
Dynamic Range：72.5dB
Sensitivity：0.65V/Lux-sec@550nm
Min Illumination：0.5 Lux
Shutter Type：Electronic Rolling Shutter / Frame Exposure
Connecting Port Type：USB2.0 High Speed
Free Drive Protocol：USB Video Class (UVC)
OTG Protocol：USB2.0 OTG
AGC/AEC/AWB：Auto
Adjustable Parameters：
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure
Lens Parameter: AF lens, ,HFOV about 62 Degree
Power Supply：USB BUS POWER 4P-1.0mm socket
Operating Voltage：DC5V
Working Current：150mA~240mA
Working Temperature：-10~70℃
Storage Temperature：-20~85℃
Board Size /Weight：62.3X9X6mm / about 20g
Cable：Standard 1m / Optional 2m,3m,5m
Operating System Request：
WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
Linux with UVC (above Linux-2.6.26),MAC-OS X 10.4.8 or later,Android 4.0 or above with UVC
Ultra HD: still picture resolution: 3264×2448 Max.
Autofocus: Shoot objects in close and distance on the same camera, automatically controlled without lens adjustment tool, clearer and easier than the fixed focus camera.
Built in Microphone: Capture video with audio, Super small and mini strip size for your lightburn laser engraver. Compact lightburn laser camera for all kinds of machine vision.
Mini USB autofocus camera with none-distortion lens, HFOV is about 62 degree.
Embedded with 1/3.2” Imx179 image sensor for better picture performance, mini strip usb camera,with 1meter/3.3ft USB cable for laptop.
Picture format MJPEG or YUY2 optional, cameras with high resolution can be used in any video system for personal or industrial.

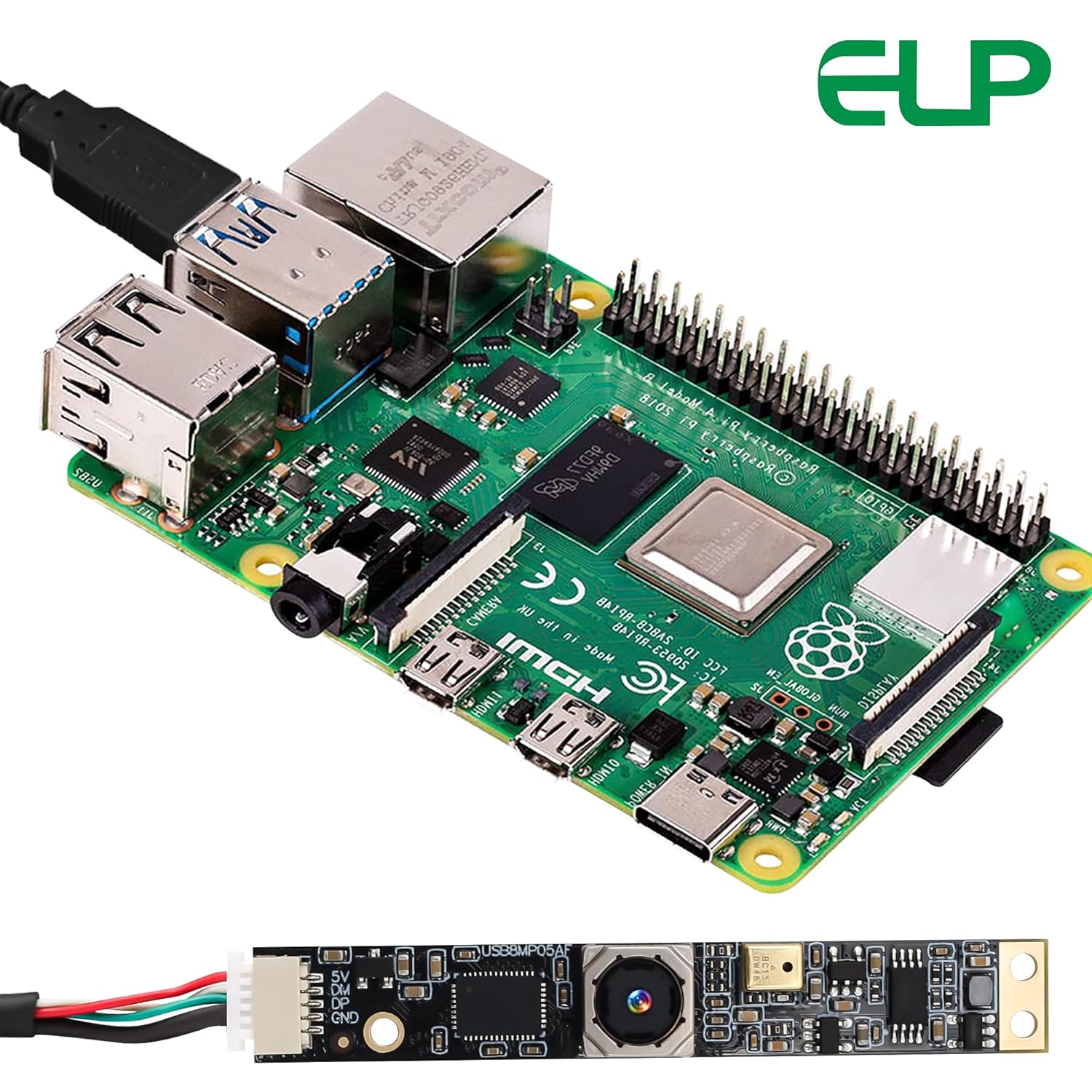

Compatible with raspberry pi, Ubuntu, Opencv, Amcap and many other USB web camera software and hardware.
Plug&Play: UVC compliant, just connect the camera to PC, laptop, Android device with the included USB cable without extra drivers to be installed.
Applications: ELP 8mp autofocus usb camera with microphone is highly recommended for a home surveillance system, monitoring 3D Printer, object recognition and tracking, Bar code QR code identification scan, mini lightburn camera for laser engraver, or other machine vision applications which demand high resolution.
