Price: ₹600 - ₹499.00
(as of Dec 11, 2025 05:45:28 UTC – Details)

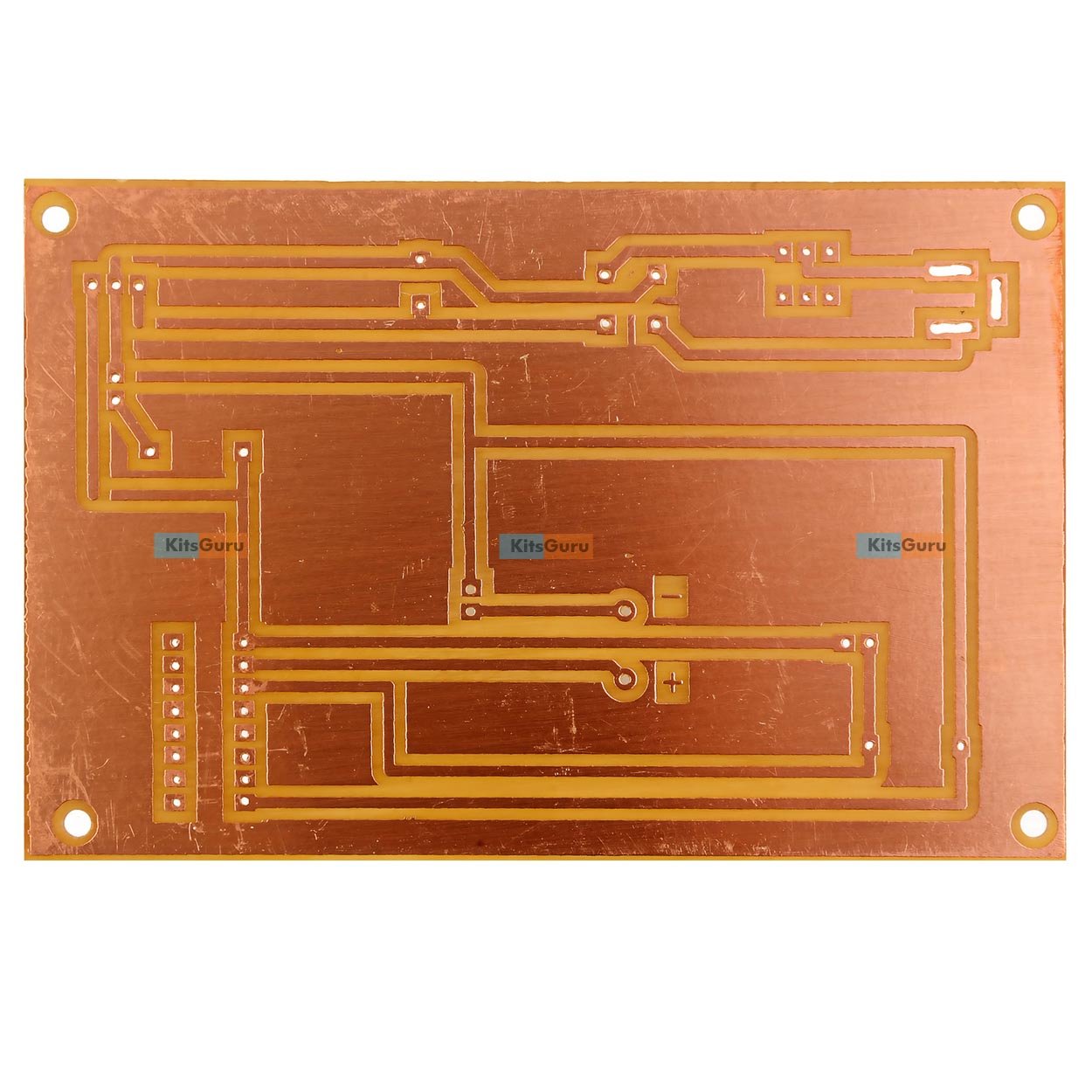

Electronic eye has much use in this electronic age, also Known as magic eye. It can be used as an automatic guest indicator at the door, if fitted on the bottom of the door entrance. Once it is installed at the door there is no need to install a call bell. It can also be used at homes or in banks as a burglar alarm. Fix the LDR to the wooden door or a locker to be protected in such a manner that when anybody tries to open it, a shadow falls on the LDR and the circuit gets activated and produce a pleasant sound through the buzzer. This electronic eye circuit uses NOT gate IC CD 4049. CD 4049 contains six independent NOT gate in one package; we have used one only. ADDITIONAL INFORMATION – 1. Videos Tutorials (in Hindi) are available on YouTube (free of cost), No separate CD will be provided. 2. One complete DIY set, Including Relevant PCBs, Battery Cap, Passive Components, ICs, Sensors, Modules etc. 3. Full documentation, includes Circuit diagrams, Testing document, PCB Specifications, Reading Material etc. 4. Documentation will be provided on email 5. Power Source: We will not provide any Battery with all the kits as they are not allowed in the shipments by Air 6. How to make this DIY Kit, please see the video
DIY Kit – Electronic Eye
