Price: ₹664 - ₹388.00
(as of Nov 04, 2025 00:31:52 UTC – Details)
Description:

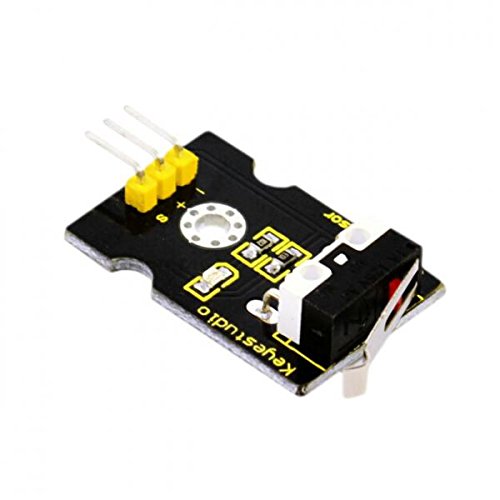

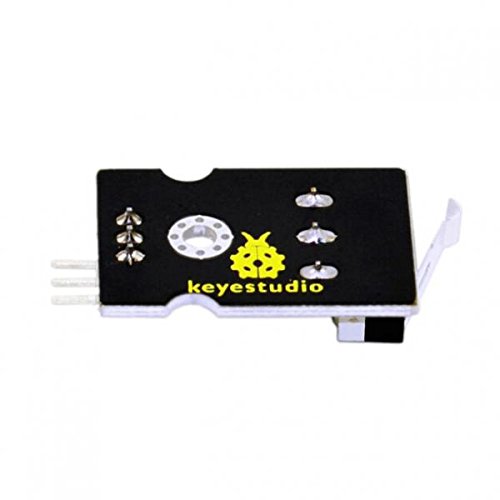

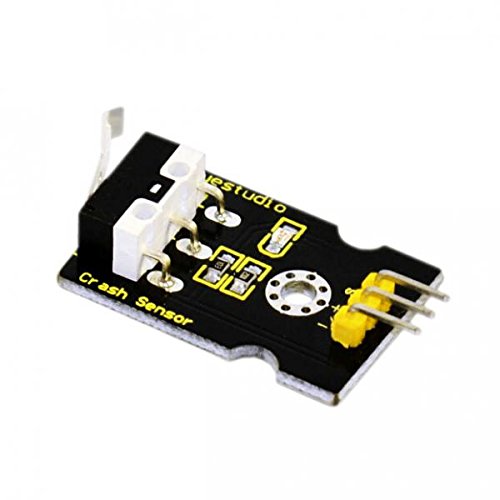

- Collision sensor, also known as electronic switch, is a digital on-off input module necessary for elementary electronic learning.
- By programming, it can realize control over light, sound device, key choice function of LCD display etc.
- Using 3P sensor cable to connect it to sensor shield, it can be installed to 4WD AL alloy mobile robot platform to realize collision detection function.
- It is both convenient and effecient.
Specification:
- If collision happens upfront of where collision module is installed, module outputs low level signal; no collision, outputs high level signal.
- Module reserves M3 mounting hole, convenient for fixation on a car.
- Module size: Approx. 3.7*2*0.9cm / 1.46*0.79*0.35inch
- With switch indicator light, if there is collision, light is on; no collision, light is out.
- Material: FR4 Epoxy Glass Fiber
Pin definition:
- +Pin: 3v-12v power supply
- Pin: GND
- S pin: Gigh-low level signal output
Package Includes:
- 1 x Crash sensor
Note:
- You can make a collision flasher using collision module and built-in LED on interface 13. Connect the collision senser to pin 3, when the collision sensor senses a collision signal, the LEDs on mainboard and module will light up simultaneously.
Collision Sensor, Also Known As Electronic Switch, Is A Digital On-Off Input Module Necessary For Elementary Electronic Learning.
By Programming, It Can Realize Control Over Light, Sound Device, Key Choice Function Of Lcd Display Etc.
Using 3P Sensor Cable To Connect It To Sensor Shield, It Can Be Installed To 4Wd Al Alloy Mobile Robot Platform To Realize Collision Detection Function.
It Is Both Convenient And Effecient.
Specification:If Collision Happens Upfront Of Where Collision Module Is Installed, Module Outputs Low Level Signal; No Collision, Outputs High Level Signal.
