Price: ₹17,924.40 - ₹13,375.00
(as of Dec 04, 2025 03:09:40 UTC – Details)
Specification:
Sensor AR0331
Lens Size 1/3 inch
Pixel Size 2.2um X2.2um
Max. Resolution 1920(H)X1080(V)
Compression format H264 /MJPEG / YUV2 (YUYV)
Resolution & frame
H264: 640X360@ 30fps /1280X720@ 30fps /1920X1080@ 30fps
MJPEG:640X480@ 30fps /800X600@ 30fps /1280X720@ 30fps/1280X1024@ 30fps/1920X1080@ 30fps /1600X1200@ 15fps /2048X1536@ 15fps
YUV:640X480@ 30fps /800X600@ 20fps /1280X720@ 5fps/1280X1024@ 5fps/1920X1080@5fps /1600X1200@ 5fps /2048X1536@ 3fps
S/N Ratio 39dB
Dynamic Range Up to 100 dB
Responsivity 2.0 V/lux-sec
Mini illumination 0. 05lux
Shutter Type Electronic rolling shutter and GRR
Connecting Port type USB2.0 High Speed
Free Drive Protocol USB Video Class (UVC)
Support OTG Protocol USB2.0 OTG
AEC Support
AEB Support
AGC Support
Adjustable parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure
Digital audio High quality digital MIC, support single, dual channel
IR CUT Connector Support 2P-1.25mm socket
LED board power connector Support 2P-2.0mm socket
Power supply USB BUS POWER 4P-2.0mm socket
Power supply DC5V
Operating Voltage 140mA~200mA
Working current -10-70degree
Working temperature -20-85degree
Board size /Weight 38X38mm/ about 30g
Cable Standard 3M
3 megapixel camera with usb port for any PC system personal or industrial video system

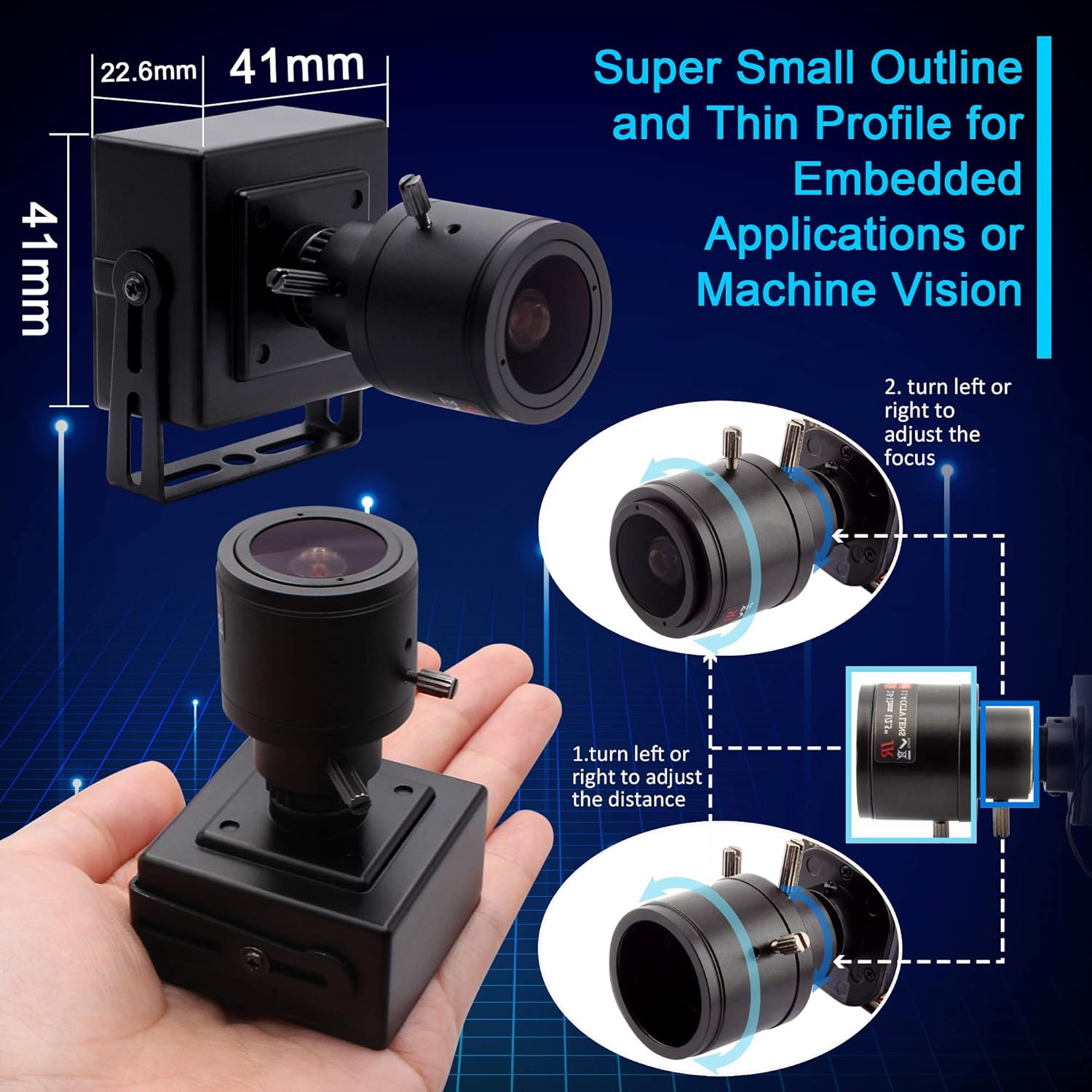

2.8-12mm HD Megapixel varifocal lens for sharp image and wide angle view
With mini black metal case, easy to take and durable to use
Support android,linux,windows OS system, widely use in all kinds of scope
UVC class,usb 2.0 interface, high frame rate real time for fast moving. 3 meters long cable.
